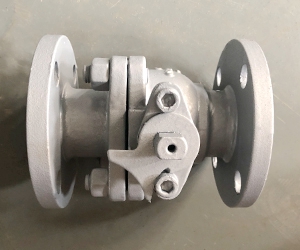

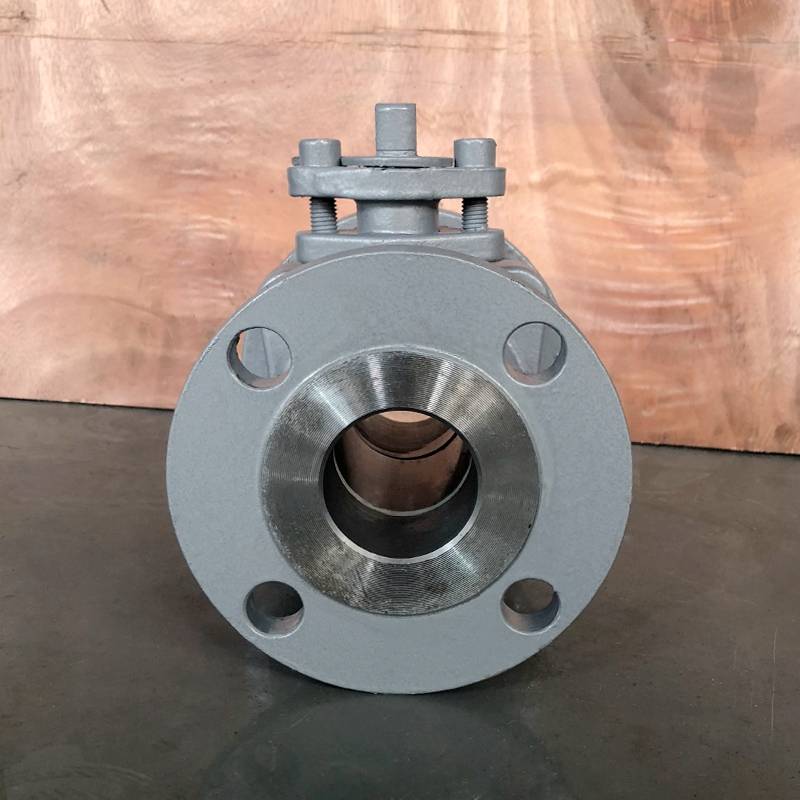

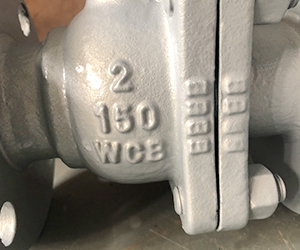

API 6D Ball Valve CL150 2IN WCB Flanged

Crafted from high-quality WCB cast steel, our WCB ball valves are designed to withstand high temperatures (-29~200℃) and pressures (up to 42.0MPa). Widely applied in various industries such as chemical, petrochemical, power, and more, they offer reliable performance under demanding conditions.​Side mounted fixed ball valves are of two-piece or three-piece side mounted design, which conforms to API 6D standard. This series of valves are according to API 607 and API 6FA fire test.

Key Advantages​

• Full-Port Design: Minimizes flow resistance, ensuring smooth and efficient fluid passage.​
• Superior Sealing: With ANSI VI - rated point - to - surface sealing structure and Inconel springs, achieves bidirectional zero leakage.​
• Easy Maintenance: Top - entry design allows for online servicing, reducing downtime significantly.​
• Effortless Operation: Low - torque operation thanks to self - lubricating bearings, enhancing actuator lifespan.​

Specifications

• Size range: 2 "- 60'' (DN15-DN1500)
• Pressure grade: ASME CLASS 150-2500 (PN16-PN420)
• Main materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Nickel-based Alloy, etc.
• Connection: Flange End, Butt Welding end, HUB end, etc.
• Operation mode: Manual, Pneumatic, Electric and Hydraulic, etc.

Structural description

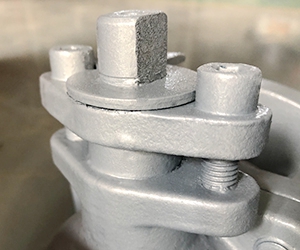

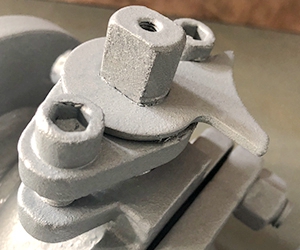

• It has locking limit device
• Fire and anti - static structure design
• Blowout proof stem design
• Body cavity pressure relief structure design (optional)

​Cost - Effective Solution​

​Through optimized production and smart sourcing, our WCB ball valves are priced lower than similar products in the market. Their durability and ease of maintenance further cut down on the total cost of ownership, making them the ultimate choice for industrial fluid control.
